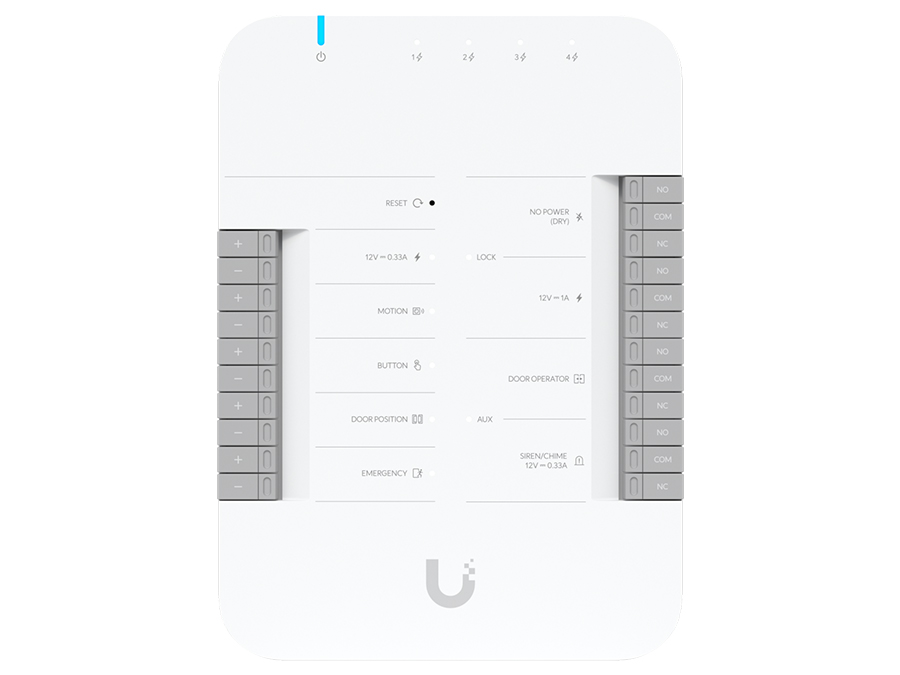

Ubiquiti UniFi Access Door Hub 4x Input, 4x Relay
SKU: UB-0073
| Brand: Ubiquiti
R 4,623.00
Incl. 15% VAT
In Stock
Description
Streamlining secure entry points for South African businesses, the Ubiquiti UA-HUB-DOOR is a sophisticated, single-door access control solution. This compact hub simplifies installation by utilising a single 802.3bt PoE++ input to power both itself and connected peripherals, including readers and locks. Equipped with four dedicated input terminals for door position sensors, exit requests, and emergency overrides, it ensures comprehensive site security. Users can gain entry effortlessly using encrypted NFC cards or the UniFi Identity mobile application. Designed for indoor environments, the unit includes a DIN-rail mounting kit for tidy installation within network cabinets or utility closets.
| Specifications | Manufacturer: Ubiquiti Manufacturer Product Code: UA-Hub-Door Input Terminals: 2x Door Exit Request, 1x Door Position, 1x Emergency Ethernet Ports: 5x 10/100/1000 Dry Output Relay: Lock: 30V DC, 1A; Aux: 30V DC, 1A Wet Output Relay: Lock: 12V DC, 1A; Aux: 12V DC, 0.33A Mounting: DIN-rail (Included) Power Input: 802.3bt (PoE++) PoE Output: 802.3af Operating Temperature: 0 to 40° C Max Power Consumption: 30W Dimensions: 174.9 x 126 x 32.9 mm Weight: 363g |
|---|
